Fully Automatic Winding machine

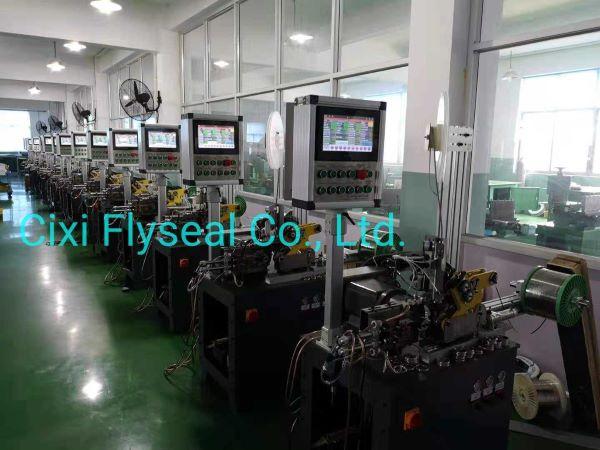

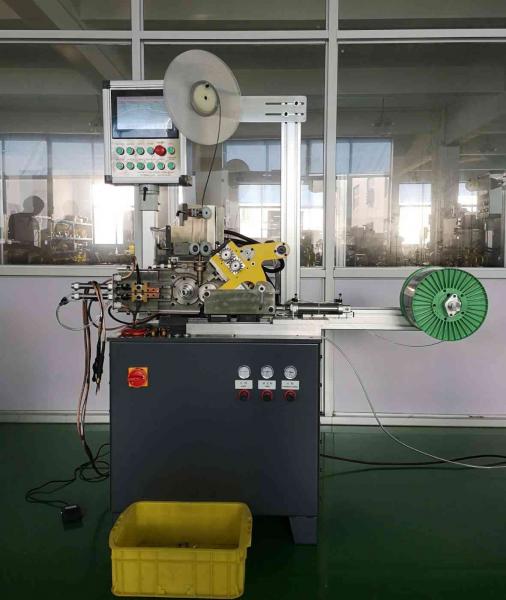

PX100D Fully Automatic Winding machine is a specially designed winding machine for small size spiral wound gasket (only for gasket without inner ring). To operate this machine, the operator only needs put raw material on the machine and setup needed data and gasket quantity, the machine will feed graphite filler and steel hoop totally automatically. The machine will stop when the set quantity arrives or material finished or break. Otherwise it will continue production fully automatically. This machine will save your labor cost a lot since one operator can take care of 5 machines easily. It is suitable for small size industrial gasket and also motorcycle exhaust gasket.

Enquiry Now

Fully Automatic Winding machine Details

STYLE	PX100D
STYLE	Fully Automatic winding machine
Producing ability	Basic type of spiral wound gasket (without inner ring) Standard package including model for one size, other size model on request with extra charge
SWG thickness	4.5mm or 3.2mm, one machine can only produce one thickness SWG, cannot change thickness on same machine
Automatic function	Fully automatic: PLC size control, Automatic spot welding, with SS strip forming roller, Automatic SS strip cutting, Automatic feed of raw material
Automatic function
Maximum gasket OD	150mm
Minimum gasket ID	26mm
Gasket OD tolerance	±0.1mm
Spindle speed	0--380rpm
Total power	8kw
Spindle motor power	0.75kw
Welder power	6kw
Power supply voltage	380V or 220V for option, 3 phases
AIR COMPRESSER	0.6-0.8 MPA
PLC	xinjie
Production rate	12s /pc (for ANSI 2" 150LB)
Machine package size	12009001750mm
Machine net weight	255kgs

Automatic winding machine PX500D
PX500D Automatic Winding machine is updated from PX500C model, it’s our newest model for manufacturing spiral wound gasket form 1/2” to 12”. Although it can produce maximum diameter up to 500mm, but recommend to produce up to 10” or 12”. For bigger size, we suggest you choose our horizontal winding machine. On base of PX500C model, PX500D has updated many main parts like PLC, touch screen, servo driver, and welding control parts, the program is also updated. PX500D has improved a lot in production speed, machine steadiness, welding quality, and gasket finish. PX500D is the most popular and important machine for spiral wound gasket manufacturing.
...Read More
Semi-automatic horizontal winder (new version) PX2500C-3
PX2500C-3 Semi-automatic horizontal winder is improved version on base of PX2500C, its size controlling, spot welding function, machine strength are all improved. To make the operating more convenient for the operator, the new version machine use 8 supporting stands to support the gasket, in stead of the large glass table in old version machine. And the new version machine move the HMI screen on left top of the machine, instead of below side in the old version machine, this arrangement allow the worker operating the machine easier.
...Read More
SWG finish press machine PX1254
repair spiral wound gasket graphite scratches
...Read More
Medium size semi-automatic winding machine PX1200S-2
This machine was designed to winding gasket from 150 to 1200mm diameter spiral wound gasket.
Both manual model and automatic model available.
Can winding any shape of SWG
...Read More
Manual Vertical big size winding machine for SWG PX1200
Very easy to use.
Suitable for SWG with or without inner ring, diameter from 200mm to 1600mm;

...Read More
Vertical semi-automatic winding machine for SWG PX500B
Semi-automatic winding machine
Suitable for 2" to 18" spiral wound gasket with or without inner ring.
PLC control winding size;
Digital touch screen interface.

...Read More
